Question

Step 1 - Understand the problem and establish design scope

Questions to ask

• Can you give an example of how a URL shortener work
• What is the traffic volume
• How long is the shortened URL
• What characters are allowed in the shortened URL?
• Can shortened URLs be deleted or updated?

Back of the envelope estimation

• Write operation: 100 million URL generated per day
  • That is 1160 per second
• Read operation: 10:1
  • Hence 11600 read per second
• Assume the service will run for 10 years
  • 365 billion records
• Average URL length is 100
  • 365 billion * 100 bytes
  • 365 TB

TO CLARIFY

KB -> 1,000
MB -> 1,000,000
GB -> 1,000,000,000
TB -> 1,000,000,000,000

Step 2 - Propose high-level design and get buy-in

API Endpoints

POST api/v1/data/shorten
	- request parameter: {longURL: longURLString}
	- return shortURL

GET api/v1/shortUrl
	- Return longURL for HTTP redirection

URL redirecting

• once the short URL inputted and received by the server, it changes to the long URL with 301 HTTP redirect
  HTTP redirect

Hash function of 1 to 1 mapping

Step 3 - Design deep dive

Data model

• Since using in memory hash table is not feasible for real world system
• We can use relational database for such one to one mapping

Hash function

• 10 + 26 + 26 possible character values for all letter and numbers
• Hence need 7 digits (3.5 trillion) to hold all URLs

Collision

• Most common functions such as CRC32, MD5 or SHA-1 have more than 7 characters, hence we are only using the first seven
  • However, this may introduce hash collision
• We can add predefined string to the long URL and re-hash if the URL already exist in the database
  • However expensive to make multiple request to DB
  • use bloom filter to improve

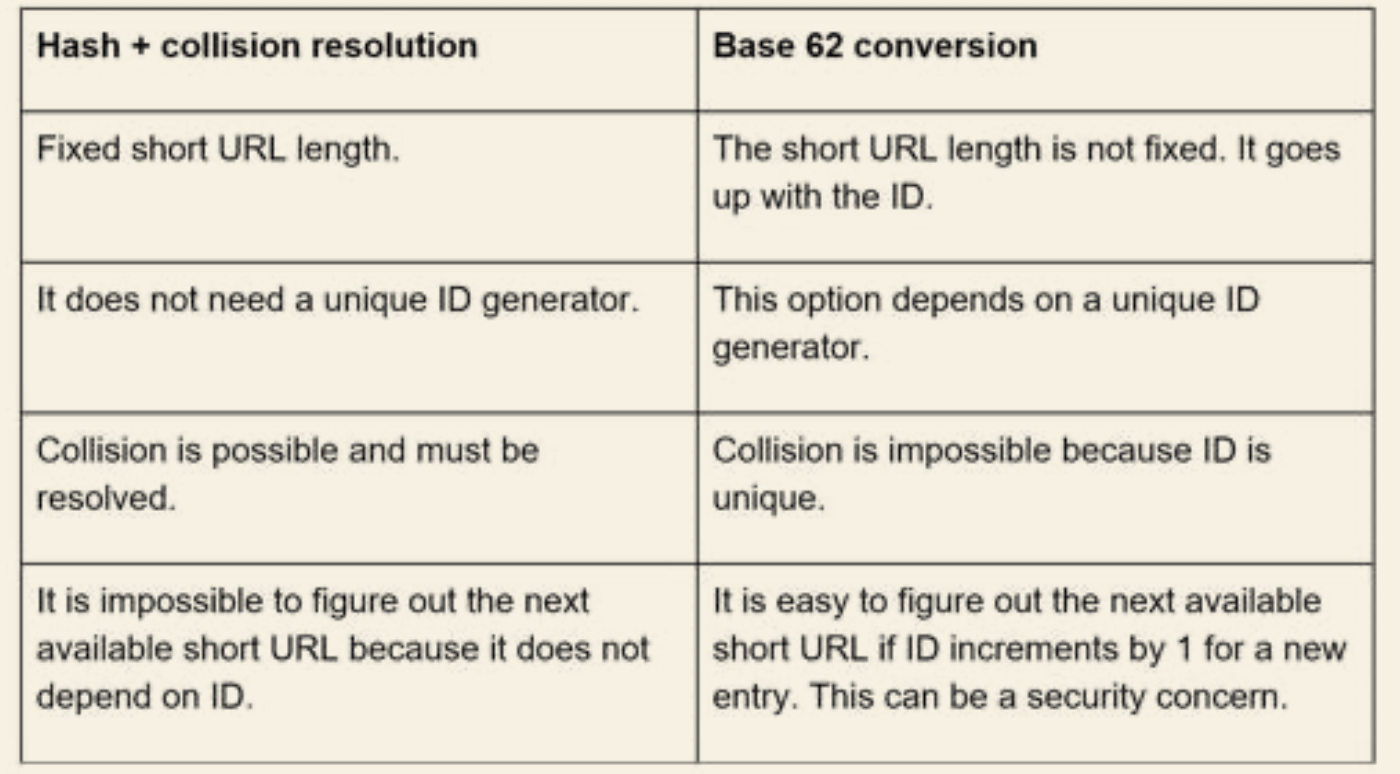

Base 62 conversion

• Or simply turn the ID of the url into another digit base to reduce the length

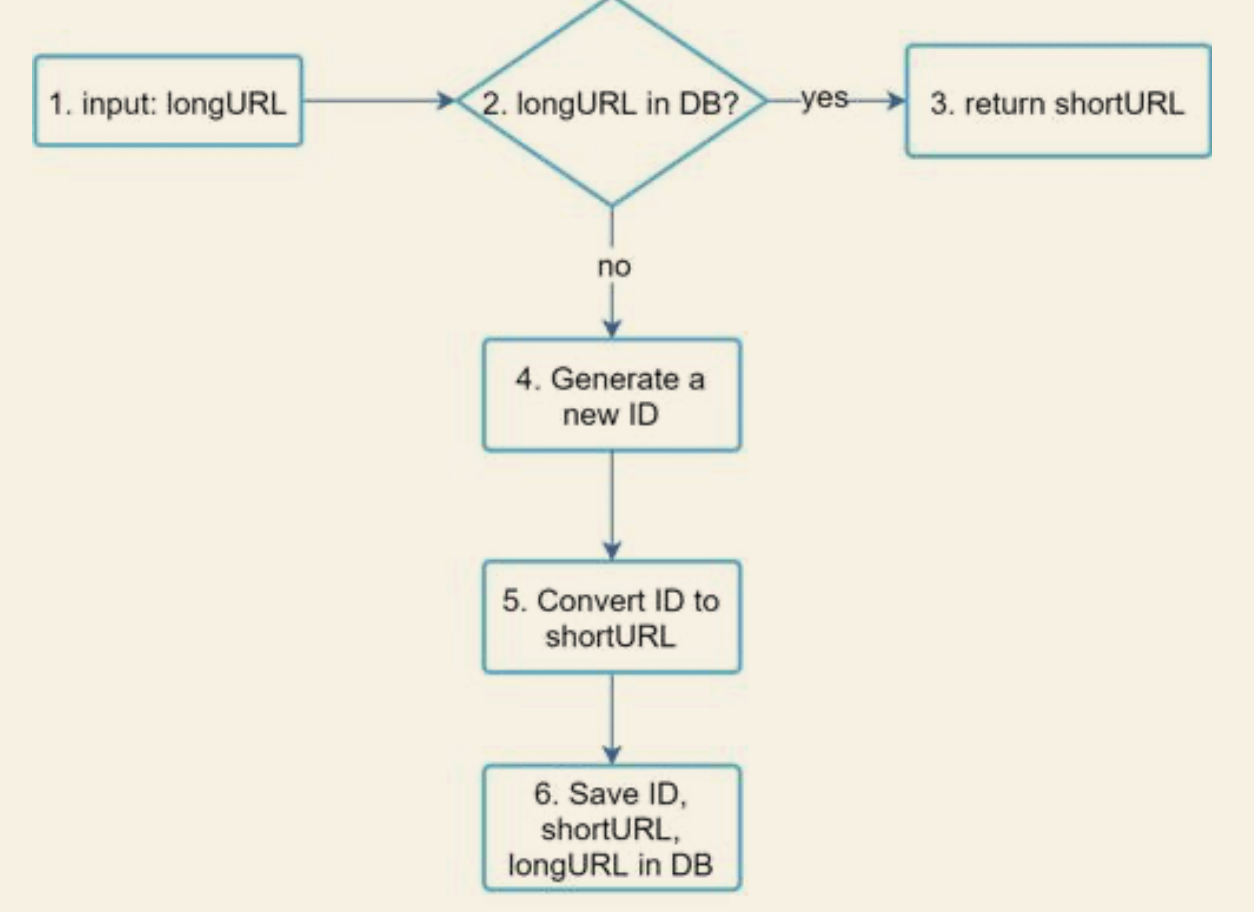

URL shortening deep dive

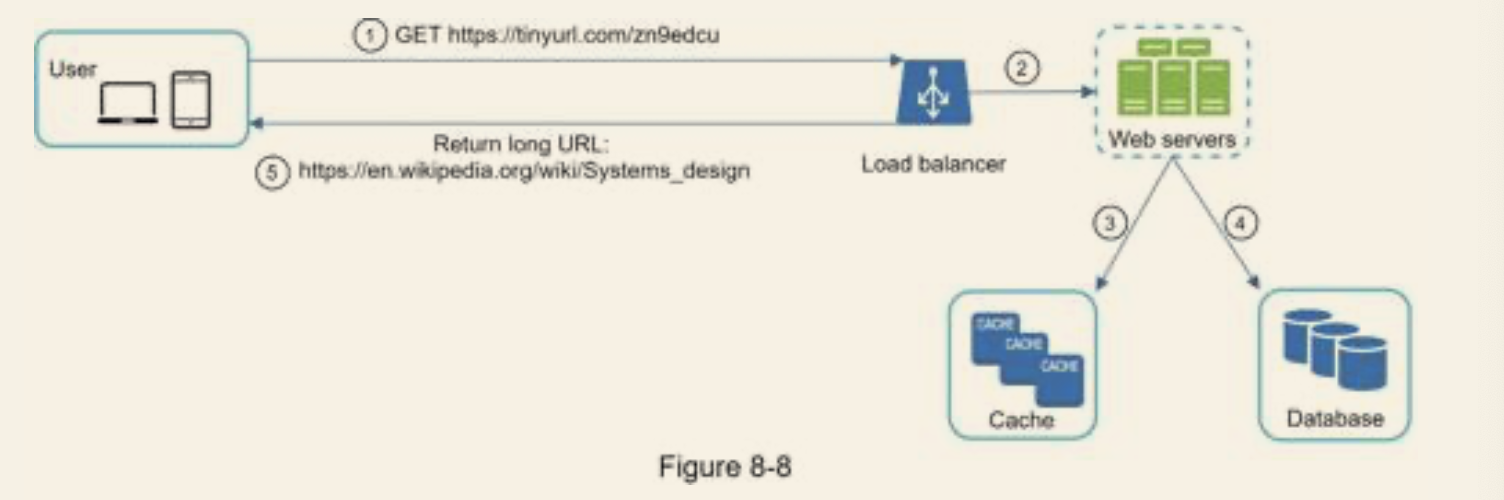

URL redirecting infrastructure

• Load balancer manages the incoming request
• If in cache, return immediately
  • Else search the database

Step 4 - Wrap up

Topics to discuss

• Rate limiter to avoid malicious requests
• Web-server scaling - since stateless, hence easy to scale up
• Database scaling - replication and sharding
• Analytics - like the volume of clicks, when do they click...
• Availability, consistency and reliability
