Question

• The size of a key-value pair is small: less than 10 KB.
• Ability to store big data.
• High availability: The system responds quickly, even during failures.
• High scalability: The system can be scaled to support large data set.
• Automatic scaling: The addition/deletion of servers should be automatic based on traffic.
• Tunable consistency.
• Low latency.

Single server key-value store

• Store all key-value pairs in a hash table
• Can be optimised using:
  • Data compression
  • Store frequent data in memory and the rest on disk

Distributed key-value store

Data partition

• Use Consistent Hashing
  • Minimise data movement in case of node are added or removed
  • Distribute data across servers evenly

Automatic scaling

• Servers should be added and removed automatically depending on the load

Heterogeneity

• Number of virtue node is proportional to the server capacity

Data replication

• To achieve high availability, data must be replicated asynchronously
  • Usually over the next N server clockwise from the consistent hashing of the servers

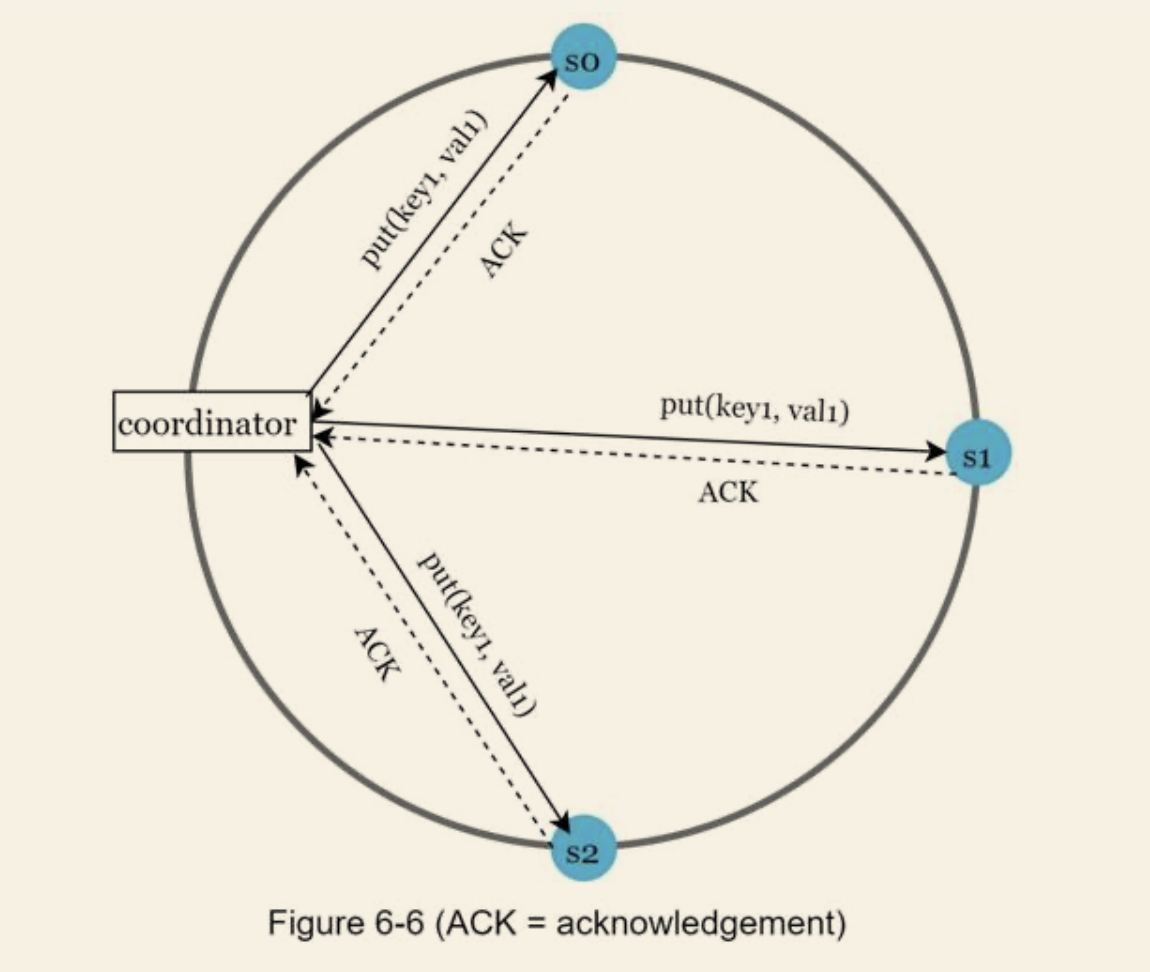

Consistency (Quorum consensus)

• Definitions

  • N = The number of replica
  • W = For a write operation to be considered as successful, write operation much be acknowledged from W copies
  • R = As above, but for reads
  •

• Possible setups:

  • If R = 1 and W = N, the system is optimised for a fast read.
  • If W = 1 and R = N, the system is optimised for fast write.
  • If W + R > N, strong consistency is guaranteed (Usually N = 3, W = R = 2).
  • If W + R <= N, strong consistency is not guaranteed.

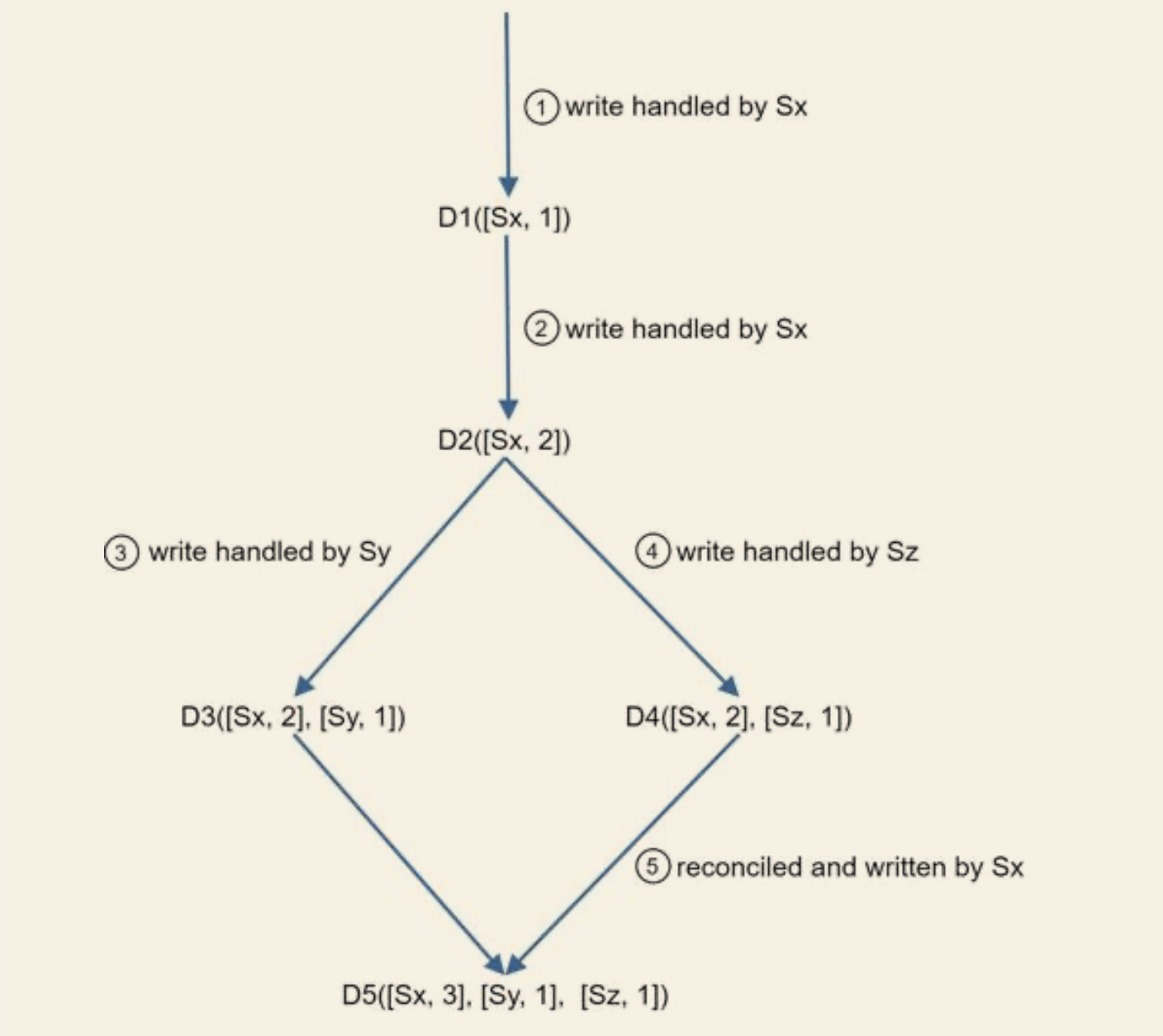

Inconsistency resolution: versioning

• Assume a vector clock is represented by D([S1, v1], [S2, v2], …, [Sn, vn]), where D is a data item, v1 is a version counter, and s1 is a server number, etc. If data item D is written to server Si, the system must perform one of the following tasks.
  • Increment vi if [Si, vi] exists.
  • Otherwise, create a new entry [Si, 1].
  •
  • If either the versioning or the servicer does not match, conflicts are identified.
• Downsides
  • Vector clocks add complexity to the client, which requires the implementation of conflict resolution logic
  • The server and version pair may grow rapidly.
    • We can set a threshold length, if exceeds the limit, the oldest pair are removed
    • May result inaccuracy in identifying conflicts, by based on a Dynamo paper, Amazon has not yet encountered this problem in production

Handling failures

Failure detection

gossip protocol

Handling temporary failures

• "Sloppy Quorum"
  • Instead of enforcing the quorum requirement, the system chooses the first W healthy servers for writes and first R healthy servers to read on the hash ring.
  • Offline servers are ignored
• Hinted handoff
  • For offline servers, all tasks are dealt according to consistent hashing cycle
  • Once server back online, all changes will be pushed back to achieve data consistency

Handling permanent failure

Use Merkel Tree to identify which bucket (set of key-value pair) are not synchronised and synchronise those buckets only.

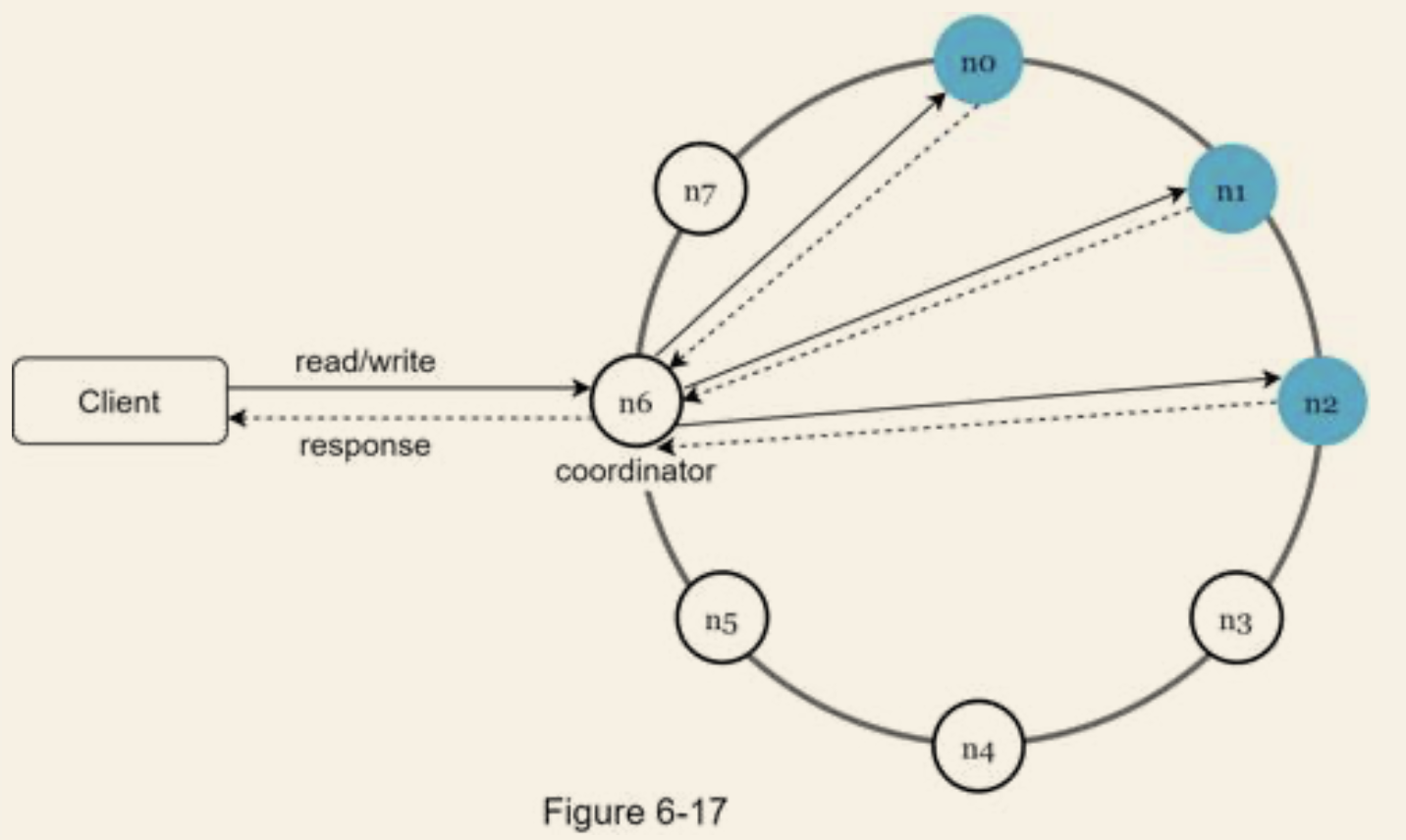

System architecture diagram

• Clients communicate with the key-value store through simple APIs: get(key) and put(key, value).
• A coordinator is a node that acts as a proxy between the client and the key-value store.
• Nodes are distributed on a ring using consistent hashing.
• The system is completely decentralised so adding and moving nodes can be automatic.
• Data is replicated at multiple nodes.

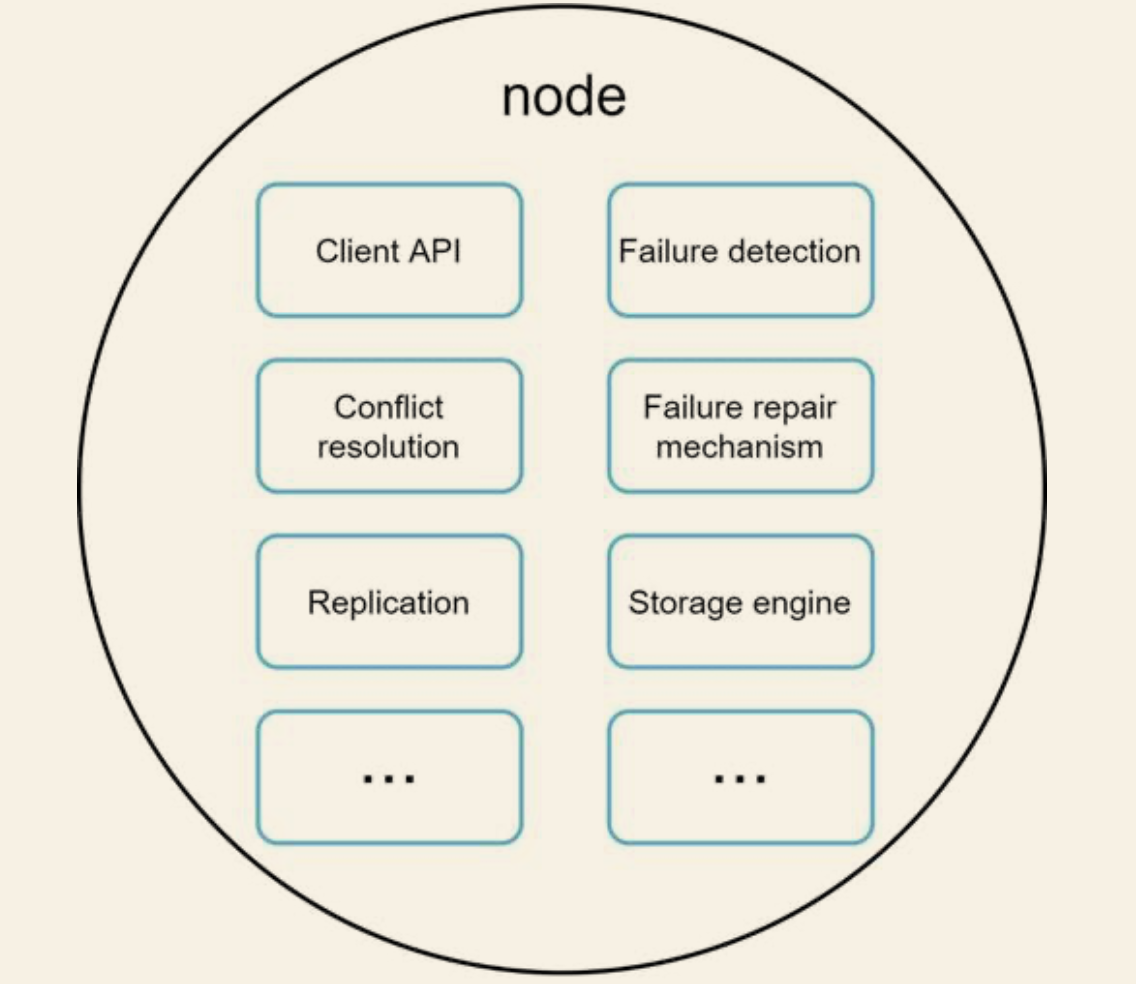

• There is no single point of failure as every node has the same set of responsibilities.

Write and read path

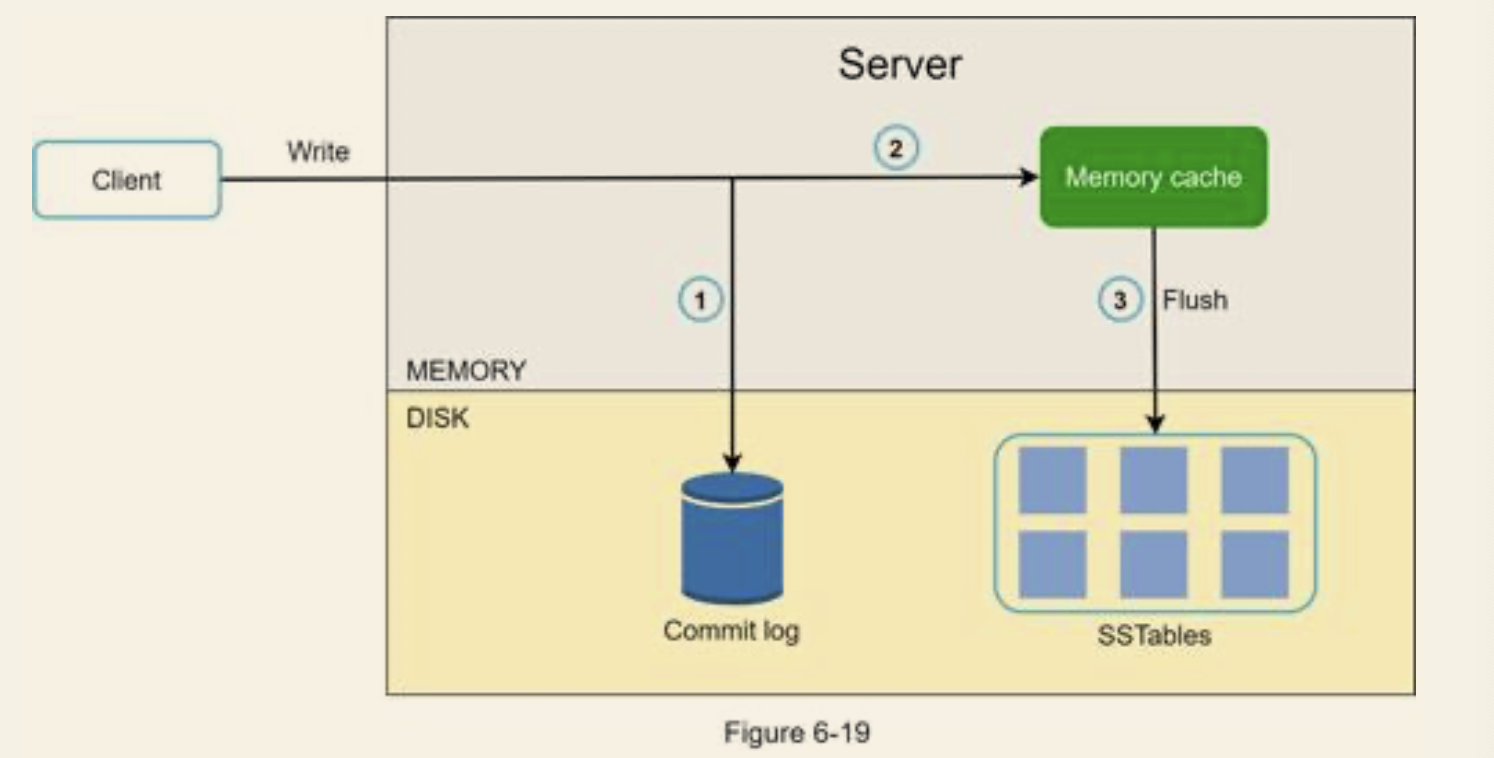

1. The write request is persisted on a commit log file.
2. Data is saved in the memory cache.
3. When the memory cache is full or reaches a predefined threshold, data is flushed to SSTable [9] on disk. Note: A sorted-string table (SSTable) is a sorted list of <key, value> pairs. ”

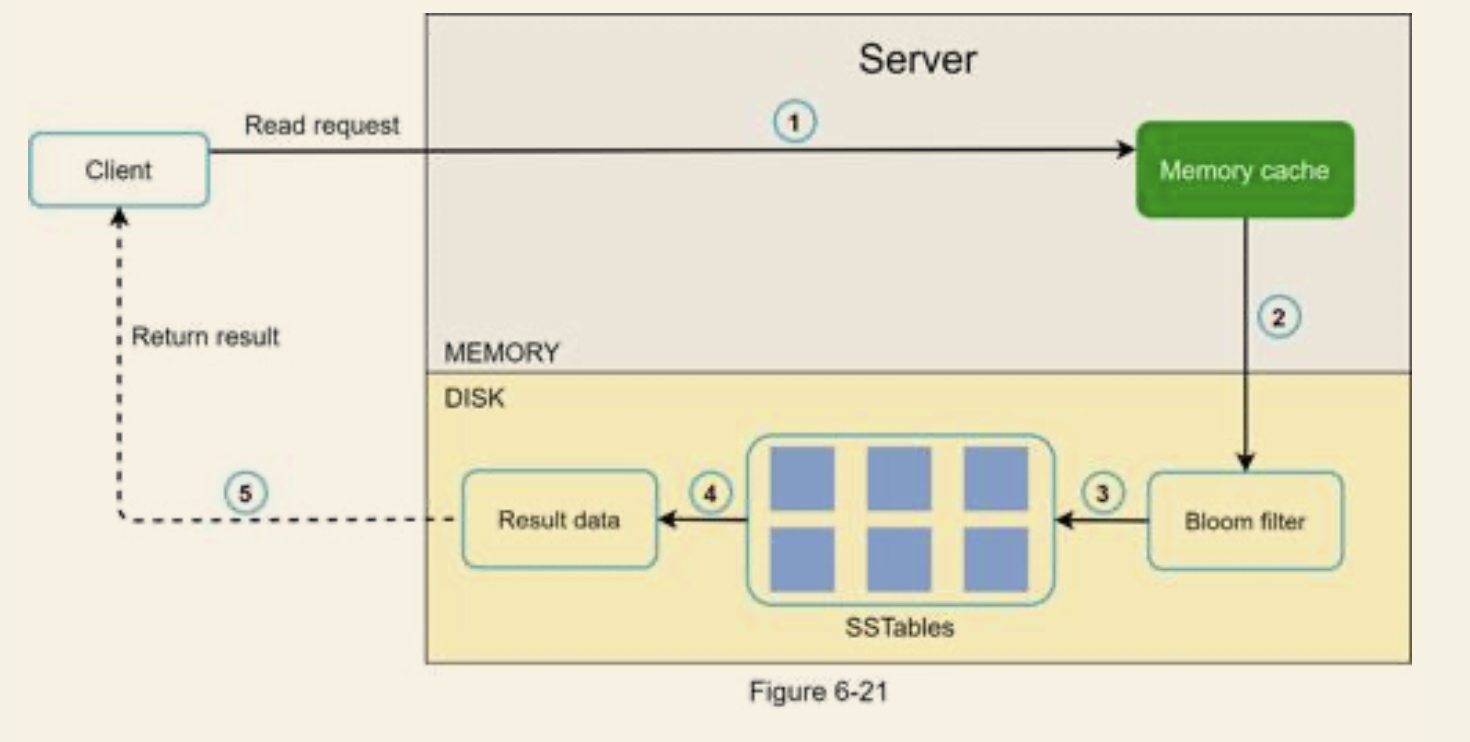

1. The system first checks if data is in memory. If not, go to step2
2. If data is not in memory, the system checks the bloom filter.
3. The bloom filter is used to figure out which SSTables might contain the key.
4. SSTables return the result of the data set.
5. The result of the data set is returned to the client.
